This Product is only available for online order!
| Price | 39,500৳ |
| Regular Price | 44,000৳ |
| Status | In Stock |
| Product Code | 19706 |
| Brand | Gigabyte |
| Brand & Model | ||
| Brand | GIGABYTE | |
| Series | Ryzen 9000/ 8000/ 7000 Series | |
| Model | X870M AORUS ELITE | |
| Supported CPU | ||
| CPU Type | AMD Socket AM5, support for: AMD Ryzen 9000, 8000, 7000 Series Processors |
|
| Chipsets | ||
| Chipset | AMD X870 | |
| Form Factor | ||
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4x DIMMs | |
| Maximum Memory Supported | up to 256 GB (64 GB single DIMM capacity) of system memory Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. |
|
| Channel Supported | Dual channel memory architecture | |
| Expansion Slots | ||
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
|
| Graphic | ||
| Graphic | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version. (Graphics specifications may vary depending on CPU support.) |
|
| Storage | ||
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Network | ||
| Bluetooth | BLUETOOTH 5.4 | |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Audio | ||
| Audio | Realtek ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| BIOS | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Ports | ||
| USB Ports | CPU+ASMedia USB4 controller: - 2 x USB4 USB Type-C ports on the back panel CPU+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| Back Ports | 1 x Clear CMOS button 1 x Q-Flash Plus button 1 x HDMI port* 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB4® USB Type-C® ports (DisplayPort*) 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector * Actual support may vary by CPU. |
|
| Internal Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x HDMI port* 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper * Actual support may vary by CPU. |
|
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Wireless Communication module | Realtek® Wi-Fi 7 RTL8922AE - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
|
| Special feature | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support Smart Backup |
|
| Warranty | ||
| Warranty | 03 Years Warranty | |

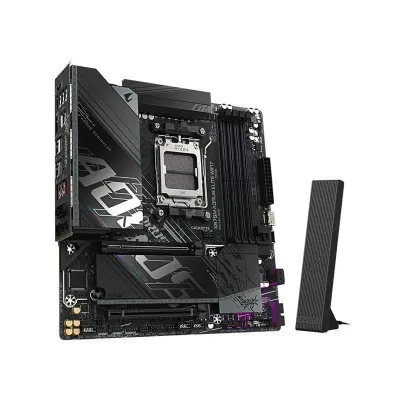

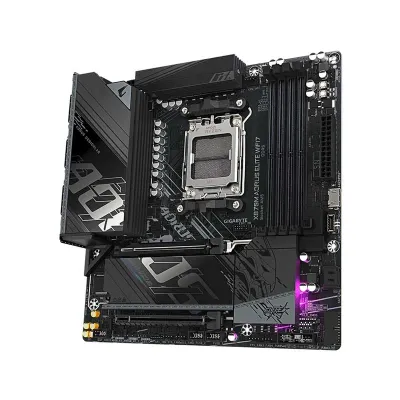

The GIGABYTE X870M AORUS ELITE WIFI7 is a high-end Micro-ATX AM5 motherboard built for serious gaming and performance-oriented PC builds. Engineered around the AMD X870 chipset and supporting Ryzen™ 7000/8000/9000 series processors, it features a robust 14 + 2 + 2 phase digital VRM design, dual-channel DDR5 support (up to 8200 MT/s O.C.), an ultra-durable 6-layer 2× copper PCB, and advanced thermal solutions including VRM thermal armor and M.2 thermal guards. For storage and expansion, it includes multiple M.2 slots (including PCIe 5.0 x4), a full-length PCIe 5.0 x16 slot (UD Slot X) plus additional PCIe 4.0 x4 expansion. Connectivity options are top-tier: Wi-Fi 7 (802.11be) with directional high-gain antenna, Bluetooth 5.4, 2.5 GbE LAN, dual USB4 Type-C ports (40 Gb/s), numerous USB 3.2 Gen1/Gen2 ports, HDMI and more. The board also offers comprehensive DIY-friendly features like EZ-Latch, Q-Flash Plus, onboard debug LEDs, and full RGB Fusion support for customizing your system’s look. Ideal for builders looking to craft a compact yet high-performance system, the X870M AORUS ELITE WIFI7 brings together next-generation CPU support, memory overclocking potential, fast networking, and strong build quality.
