| Price | 20,800৳ |
| Regular Price | 23,600৳ |
| Status | In Stock |
| Product Code | 19535 |
| Brand | MSI |
| Brand & Model | ||
| Brand | Gigabyte | |
| Series | B860 Series | |
| Model | B860M D3HP | |
| Supported CPU | ||
| CPU Type | LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU |
|
| Chipsets | ||
| Chipset | Intel B860 Express Chipset | |
| Form Factor | ||
| Form Factor | mATX | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4 x DIMM sockets |
|
| Maximum Memory Supported | 256GB Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Channel Supported | Dual channel memory architecture | |
| Expansion Slots | ||
| Expansion Slots | PCI CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 M.2 Socket CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB) |
|
| Graphic | ||
| Graphic | Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.) |
|
| Storage | ||
| Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB) - 4 x SATA 6Gb/s connectors |
|
| Network | ||
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) | |
| Audio | ||
| Audio | 3 x audio jacks | |
| BIOS | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Ports | ||
| USB Ports | Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|

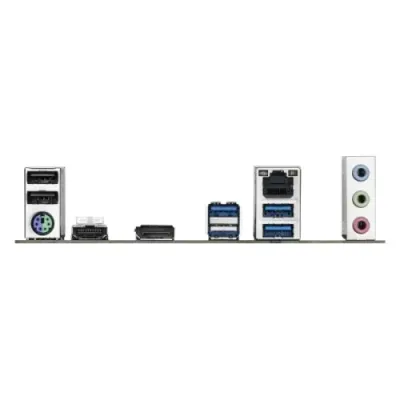

| Internal Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 3 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks Actual support may vary by CPU. |
|
| Special features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Smart Backup |
|
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty | ||
| Warranty | 03 Years Warranty | |
The Gigabyte B860M D3HP LGA1851 Micro ATX Motherboard is a powerful and reliable platform designed to support Intel’s latest 14th and 13th Gen Core processors, delivering outstanding performance and seamless connectivity for both gaming and productivity-focused PC builds. Built on the B860 chipset, this motherboard offers a solid foundation with dual-channel DDR5 memory support up to 192GB, PCIe Gen4 slots for high-speed storage and graphics, and advanced thermal design to ensure system stability under heavy workloads. It features a robust 6+2+1 hybrid digital VRM design with premium components, providing consistent power delivery for enhanced CPU performance. With multiple connectivity options including USB 3.2 Gen 1, HDMI, DisplayPort, and a Realtek 2.5GbE LAN port, it ensures fast and flexible network and peripheral integration. The B860M D3HP also includes Q-Flash Plus for easy BIOS updates, Smart Fan 6 for optimal cooling control, and RGB Fusion for customizable lighting. Whether you're building a compact gaming rig or a powerful workstation, this Micro ATX board offers exceptional features and expandability in a compact, future-ready form.
